Comprehensive Analysis of Gravity Separation Methods in Gold Ore Processing

Gravity separation is one of the most widely used methods in gold ore processing, leveraging the density difference between gold and other minerals to achieve separation. This technique is particularly effective for coarse gold particles and placer gold deposits. This article provides a detailed analysis of commonly used gravity separation methods in gold processing, including jigging, shaking table separation, sluice separation, and combined gravity separation processes.

Jigging Separation Process for Gold Ore

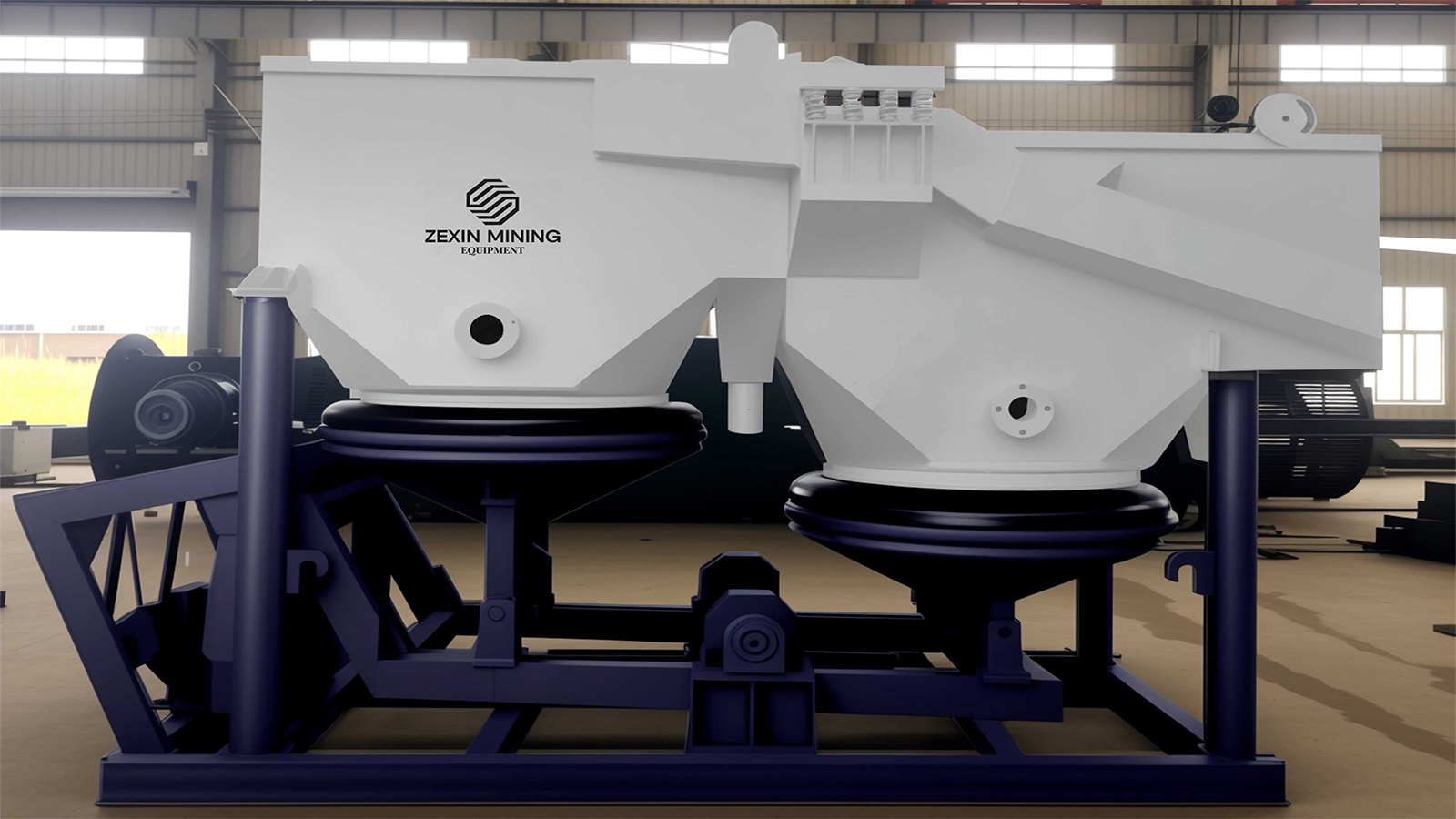

Jigging separation uses jig machines to process gold ore by utilizing the principle of mineral stratification in a vertically moving pulsating medium. In this process, particles mix and stratify according to their specific gravity, with lighter minerals positioning in the upper layer and heavier minerals settling at the bottom. These stratified products are then discharged separately through mechanical and water flow actions.

Jig machines are primarily suitable for processing coarse gold particles with a size range of 0.074-50mm. The process offers advantages such as high processing capacity, relatively low capital investment, and excellent recovery rates for coarse gold particles. However, its efficiency decreases significantly when processing fine gold particles.

Shaking Table Separation Process for Gold Ore

Shaking table separation employs shaking tables to process gold ore. During operation, minerals on the table surface are separated by horizontal medium flow. The shaking table operates by using an electric motor to drive the table in longitudinal reciprocating motion while creating differential movement between the slurry flow and table surface. This causes mineral particles to undergo both vertical stratification and horizontal separation during their reciprocating motion on the table, ultimately achieving separation.

Shaking tables are generally suitable for three different particle size ranges in gold processing:

- Coarse sand tables: 0.5-2.0mm

- Fine sand tables: 0.074-0.5mm

- Slime tables: 0.037-0.074mm

Shaking tables provide excellent selectivity and visual control of the separation process, making them particularly valuable for final cleaning stages. However, they have relatively low processing capacity compared to other gravity methods.

Sluice Separation Process for Gold Ore

Sluice separation utilizes spiral sluices for gold processing. This method combines the forces of water flow, gravity, and friction between mineral particles and the sluice surface to achieve separation. Lighter minerals are carried away by water flow, while heavier particles remain within the equipment, resulting in effective separation.

Spiral sluices are generally suitable for gold ore with particle sizes between 0.03-0.6mm. They offer advantages such as simple structure, low investment cost, minimal maintenance requirements, and high processing capacity. However, they provide relatively lower separation precision compared to shaking tables.

Combined Gravity Separation Processes for Gold Ore

The gravity separation methods described above are primarily applicable to coarse gold or placer gold deposits. For vein gold ores or fine-grained gold ores, a single gravity separation method often cannot achieve ideal gold concentrate results. In these cases, combined processes are employed, with gravity separation serving as just one component of the overall process.

In grinding-classification circuits, jig separation or sluice separation is occasionally used in combination with shaking tables to recover coarse gold particles that have already been liberated, creating a favorable environment for subsequent flotation or cyanidation. Commonly used combined gravity separation processes for gold ore include:

Gravity Separation-Cyanidation: Suitable for processing gold-bearing quartz vein oxide ores. The raw ore first undergoes gravity separation, with the resulting concentrate proceeding to cyanidation for gold extraction; alternatively, the raw ore can be directly gravity separated, with the tailings and classified materials separately subjected to cyanidation.

Gravity Separation-Flotation: First using gravity separation to recover coarse gold particles from the ore, then subjecting the gravity tailings to flotation. This process flow is suitable for treating ores that would otherwise only be processed by flotation, gold oxide ores, and ores containing free gold. Compared to a single flotation process, this combined approach can achieve higher recovery rates.

Selection Factors for Gravity Separation Methods

The selection of an appropriate gravity separation method for gold ore depends on several factors:

Gold Particle Size: Coarse gold (>0.1mm) is typically well-suited for gravity separation, while fine gold particles may require additional processing methods.

Ore Mineralogy: The presence of other dense minerals and the overall mineral composition can affect the efficiency of gravity separation.

Liberation Characteristics: The degree to which gold is liberated from the host rock directly impacts recovery rates in gravity separation.

Processing Scale: Larger operations may benefit from certain gravity methods with higher throughput capacities.

Economic Considerations: Capital investment, operating costs, and potential recovery rates must all be balanced against the value of the deposit.

Conclusion

The selection of gold ore processing methods depends primarily on the nature of the gold ore. Generally, gravity separation is employed for coarse gold, flotation for fine-grained gold, and cyanidation for refractory gold ores. Often, a combination of these methods is necessary for optimal gold recovery.

Gravity separation continues to be a vital component in many gold processing operations due to its relatively low cost, minimal environmental impact, and effectiveness for certain ore types. Modern innovations in gravity separation equipment have also improved the recovery of fine gold particles, extending the applicability of these techniques.
