Graphite Beneficiation Process
Zexin provides professional Graphite beneficiation process solutions for efficient extraction and processing of Graphite mineral resources.

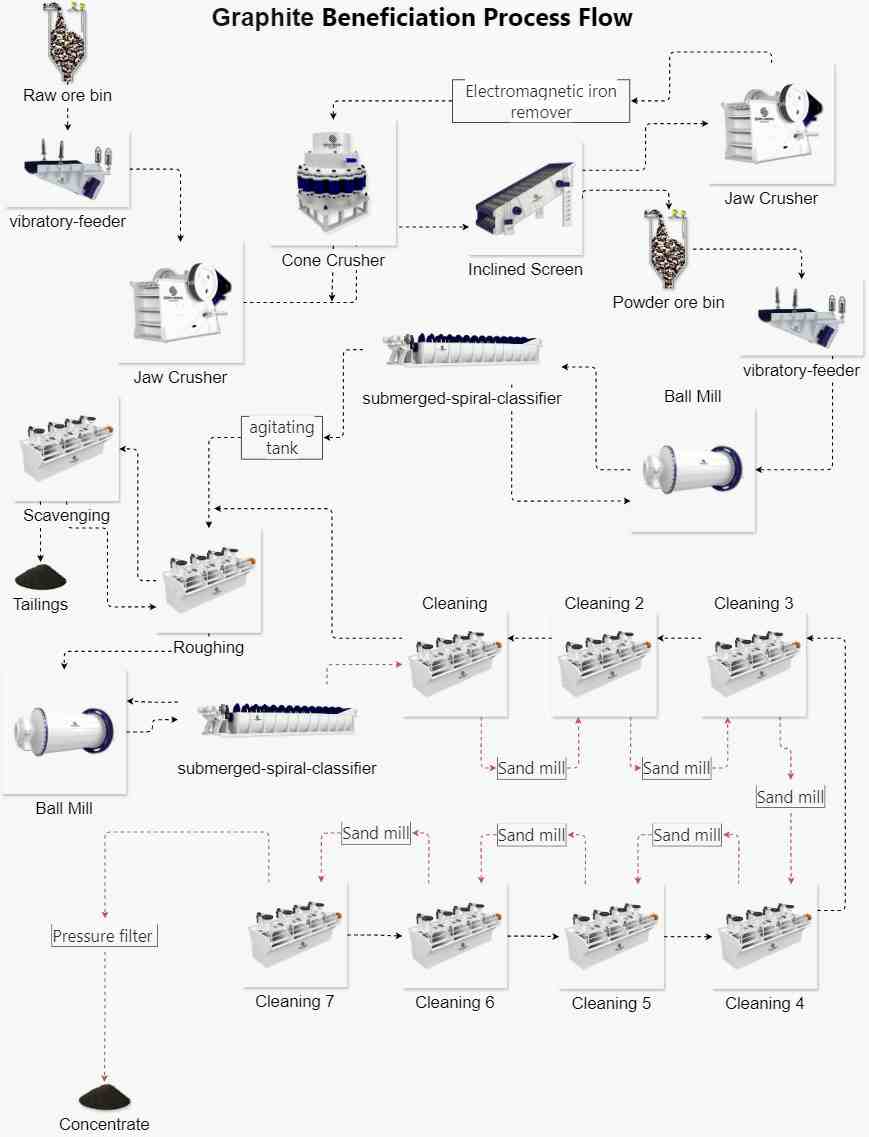

Graphite Beneficiation Process Flow
Crystalline graphite possesses natural floatability, making flotation the primary method Zexin employs for graphite ore processing. Flake graphite demonstrates excellent flotation properties, allowing for effective separation through flotation techniques. For graphite ores containing multiple gangue minerals, Zexin implements combined gravity separation and flotation processes to achieve optimal results. Our graphite beneficiation process is particularly suitable for different crystalline forms of graphite ore, including those associated with mica, silicate minerals, or pyrite.
To preserve the integrity of graphite flakes, which directly affects concentrate value, Zexin typically implements a multi-stage grinding and flotation process. This approach involves carefully controlled grinding followed by flotation, with subsequent regrinding and reflotation of intermediate products. This progressive liberation strategy minimizes overgrinding of graphite flakes while effectively separating them from gangue minerals. The multi-stage process ensures optimal flake preservation while achieving high-grade concentrates that meet stringent market specifications.
For graphite ores associated with heavy minerals, Zexin employs an integrated approach combining gravity separation and flotation. The process begins with gravity separation to remove heavy minerals, followed by flotation of the gravity tailings containing graphite and lighter gangue minerals. This sequential methodology maximizes graphite recovery while effectively managing complex mineral associations. The combined process is particularly effective for graphite ores containing sulfides or other dense minerals that could interfere with direct flotation performance.
Zexin's graphite beneficiation processes utilize carefully selected equipment optimized for each processing stage. Primary crushing typically employs jaw crushers, while secondary and tertiary crushing may utilize cone crushers or hammer mills depending on ore characteristics. Grinding operations primarily use wet ball mills or grid-type ball mills that minimize graphite flake damage. Flotation typically employs specialized JJF, XCF, or XJB-type flotation cells designed for graphite processing. Dewatering systems incorporate hydrocyclones or belt filters optimized for graphite concentrate handling.
Zexin's graphite beneficiation processes employ carefully formulated reagent regimes tailored to specific ore characteristics. In multi-stage flotation operations, common frothers include various oils (No.2 oil, No.4 oil), ether alcohols, and butyl ethers. Collectors typically include kerosene, diesel oil, heavy oil, sulfonic acid esters, sulfates, phenols, and carboxylic acids. The precise reagent combinations and dosages are determined through detailed mineralogical analysis and bench-scale testing, ensuring optimal selectivity, recovery, and concentrate quality for each unique graphite deposit.
Applications
Crystalline Graphite Processing
Our specialized flotation technology effectively processes various forms of crystalline graphite, preserving the valuable natural flake structure through carefully controlled grinding and flotation parameters. The process incorporates advanced multi-stage circuits, precisely formulated reagent regimes, and optimized flotation cell configurations to maximize flake integrity while achieving high purity levels. This tailored approach enables the production of premium flake graphite concentrates for high-value applications including expandable graphite, lithium-ion battery anodes, and advanced refractory materials.
Graphite-Mica Separation
Zexin's advanced processing technology excels at separating graphite from associated mica and other silicate minerals through precisely controlled grinding and selective flotation techniques. Our process combines optimized particle liberation, specialized reagent combinations, and carefully designed flotation circuits to effectively separate these minerals with similar flotation properties. This sophisticated approach enables the processing of complex graphite-silicate ores, producing high-quality graphite concentrates with minimal silicate contamination while maintaining maximum recovery from challenging deposits.
Fine-Grained Graphite Beneficiation
Our innovative beneficiation technology addresses the challenges of processing fine-grained graphite ores through specialized flotation techniques, optimized reagent systems, and precisely controlled processing parameters. The system incorporates advanced cell designs, custom collector formulations, and carefully managed hydrodynamics to effectively float fine graphite particles while minimizing entrainment of gangue minerals. This specialized approach transforms fine-grained graphite resources with complex mineral characteristics into high-value concentrates suitable for applications requiring high purity and consistent particle size distribution.
Complex Graphite Ore Processing
Zexin's integrated beneficiation approach successfully processes complex graphite ores characterized by challenging combinations of varying crystalline forms, associated silicate minerals, and sulfide impurities. Our comprehensive processing solution incorporates multiple stages of optimization, including specialized pre-treatment techniques, selective flotation circuits, and advanced separation technologies. This multi-faceted methodology has successfully transformed numerous difficult-to-process graphite deposits into viable commercial operations, expanding global graphite reserves while maintaining high recovery rates and consistent product quality.
